• 2 sided display
  • 526 total LEDs (WS2802B)
  • lots of solder and wire
  • Arduino Nano
  • Voltage regulator
  • 7.4v RC battery pack

I started riding with the Providence Bike Jam crew at the beginning of 2021, and I knew from my first ride that these were my folks. Lights, music, smiles, and bicycle advocacy; what’s not to love.

Given my recent excursion into the world of microprocessors and LEDs, I knew I had to make something for my bike. So, I made a rough trace of my frame space, cut some wood, plastered each side with LEDs.

I can upload new patterns/designs to the Nano, which helps keep it fresh. I’m currently working on plans to adapt this rig to be sound reactive.

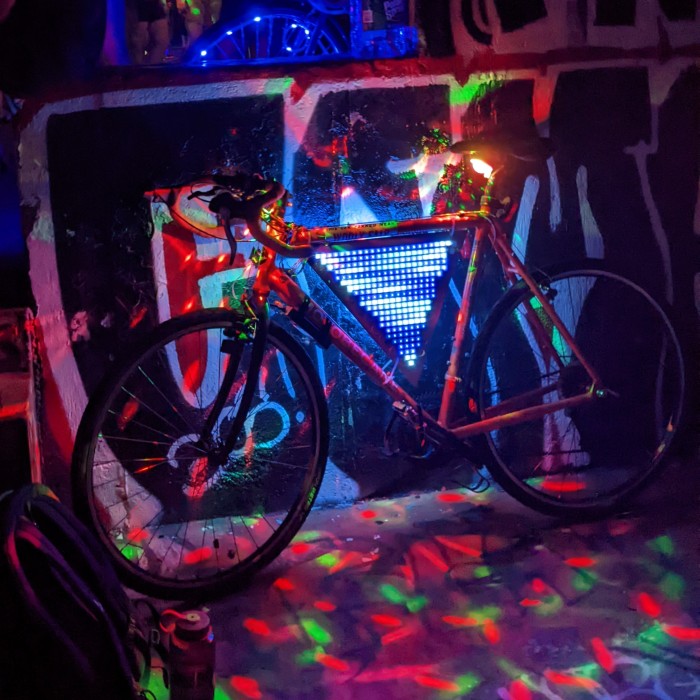

Bicycle Frame Display

Custom Mapping with MoonModules WLED Fork

I recently was working on mapping a custom LED layout for the Lil’ Lamb I made before The Big Deal, a Wooly Fair event in Providence, Rhode Island. I realized that the MoonModule WLED sound reactive fork offered a bit more for me and my oddball LED layouts, and figured out that the way for me to map it was with a 2d-gaps.json file. Once I figured that out, I realized I could run the same sound reactive WLED installation on this bike LED display as well. Stay tuned for more updates!
